460mm electric paper cutting machine, paper die cutting machine
Paper cutter, paper die cutting machine description
1. patent technique of cutting with lean blade, easy to cut and is suitable for all kinds of paper
2. independent design for paper pressing part, effectively solve the problem of untightness of paper pressing by traditional electric-driven machine, and enhance the efficiency.
3. intelligent control, LCD display, optimized and updated program makes it possible to adjust the time of pressing and cutting paper, and set the collabration position of paper pushing; self-examing of functions and errors.display by code, have counting function; the program-controlling can set 100 groups *3 cutting program.
4. marked cutting position indicating, infrared laser indicating line, which is clear and exact
5. Spin cutter with fine adjusting depth curve technology device
6. the design of infrared grating can protect the circuit safely: the front infrared design for safety and back protective shield meets the CE criteria, making the operation more safely
High precision automatic electric paper cutter features
Inclined blade cutting patented technology
Any paper can be cut easily with inclined blade design
Intelligent control, LCD
Optimization and upgrading program, pressing, cutting time and calibrating spot of pushing size can be set at will,99 programs can be set fpr program series. Each program 3 cuts
Optical cutting line
Infrared laser indicating line, high-visible
Safe guard design
Making according to CE standard to guarantee safety with front & back plastic cover protective design
Independent paper-pressing design
Make effectively solve the problem of pressing untight with independent motor
Concavo Convex Platform For Pushing
Avoid last paper not being pushed completely
Specifications
| Item | 460mm Electric Paper Cutting Machine |
| Model no | DB-4606R |
| Max cutting size | 460mm |
| Min. cutting size | 40mm |
| Cutting thickness | 60mm |
| Cutting precision | +-0.2mm |
| Pressing paper mode | Electric |
| Push paper mode | Program |
| Programmable | Yes |
| Display | LCD |
| Power | 220V/1100V;1.5KW |
| Machine size | 940x800x820mm |
| Machine weight | 130kgs |

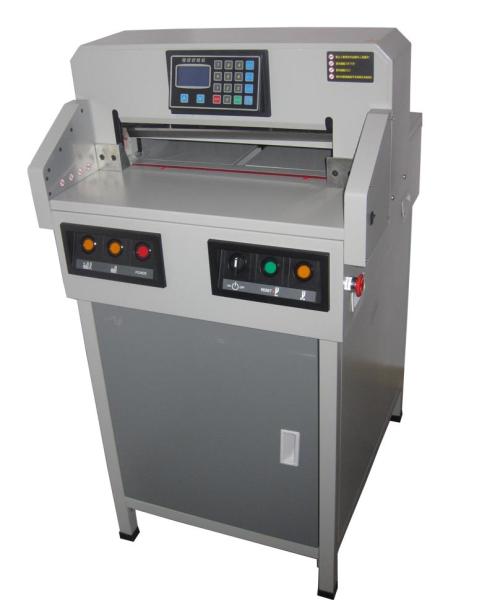

460mm electric paper cutting machine, paper die cutting machine photo
Electric paper cutter technical performance
Mainly in the paper cutter's cutting precision level, maintain the accuracy, quality, stability, ease of operation and safety aspects.
Technological level of domestic and international technology paper cutter advanced countries have a certain gap, mainly as follows:
1, control system is relatively backward, the lack of automatic detection devices, from the control system is concerned, our country has just started using PLC, which has been adopted across the board computer control abroad, using computer control, the use of a computer for each execution unit to monitor and adjust, while pre-parameters automatically adjust ren under computer control, greatly reducing the time and to ensure reliable operation of the auxiliary.
2, appearance and ease of use of a certain gap. However, by domestic producers paper cutter efforts in recent years, the gap between domestic and foreign products in the paper cutter rapidly shrinking, even in the leading part of the technical level, the basic color of foreign computer program control, while the country has mainly digital mainly the lack of security to protect all kinds of mechanical paper cutter abound and sales, computer controlled paper cutter paper cutter is the trend, and is growing at a faster rate to replace a large area cutting other control methods.
