670mm paper cutting machine for photo, books, and PVC etc...
Main Features:
Electronic keypad LED digital display that allows indication accuracy to .01"
Optical cutting line , two side guides
Transparent safety guards on back tables, infrared safety on front table, protection switch
The clamp can be used independently from the blade
Easy blade adjustment from the outside of machine
Features like a safe and simple electromechanical drive for blade, clamp and back gauge make this paper cutter ideal for quick-print and franchise print shop
Automatic hydraulic program control paper cutting machine features:
1. no groove on the push-paper table, screw mandrel and guide rails at two sides ensure the paper pushing very steadily and cutting accurately.
2. New mechanical pedal ensure the locating and cutting more accurately.
3. Two sides tables make the book stacking easy, improve your work efficiency.
4. With infrared protection device.
5. With touch panel. blade depth, paper-pressing time and paper-push size calibration can be adjusted by machine self computer, also with a number of self checking function, error code display, and electronic fine tuning hand wheel.
1. Design with CE standard, front grating safety protection and back protection cover conform to safety system
2. Independent function of pressing paper and cutting paper
3. Inclined cutting technology
4. Spin cutter with adjusting depth curve technology device
5. Function of double orbit push paper for guarantee of precision
6. Imported main motor with strong motive power
7. Precise numericalcontrol circuit design of pushing paper, accurate location, reset protection and digital displayed cutting size
8. Optical cutting line
Specifications
| Item | 670mm hydraulic paper cutting machine |
| Model no | DB-670V8 |
| Max cutting size | 670mm |
| Min. cutting size | 30mm |
| Cutting thickness | 80mm |
| Cutting precision | +-0.2mm |
| Pressing paper mode | Hydraulic |
| Push paper mode | Program |
| Programmable | Yes |
| Display | LCD |
| Power | 220V/1100V;1.5KW |
| Machine size | 1200x960x1550mm |
| Machine weight | 500kgs |

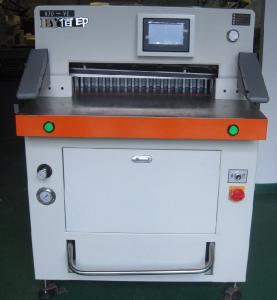

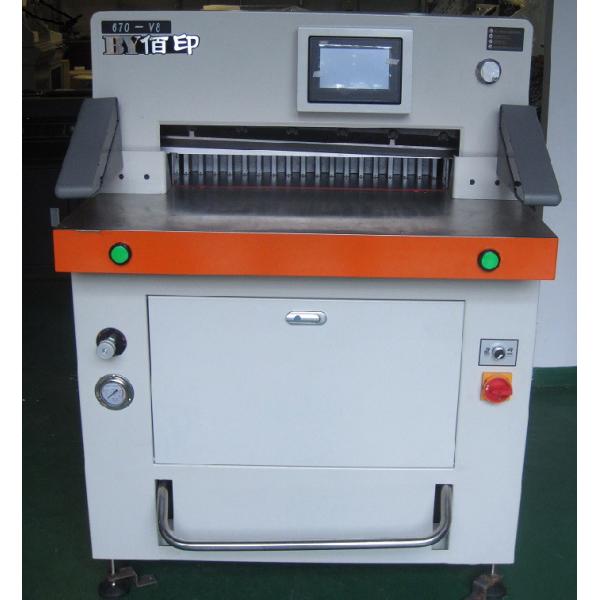

670mm Hydraulic paper cutting machine photo
paper cutting machine Development
paper cutting machine is a traditional product, is used to process the late printing paper cutting needs. Evolved from mechanical to tape paper cutting machine
Controlled paper cutting machine, and the development of the computer program control, color display, full image manipulation guided visualization and computer-aided cutting external programming and crop production data editing system that allows a shorter production lead time, higher precision cutting, lower labor intensity, and safer operation.
