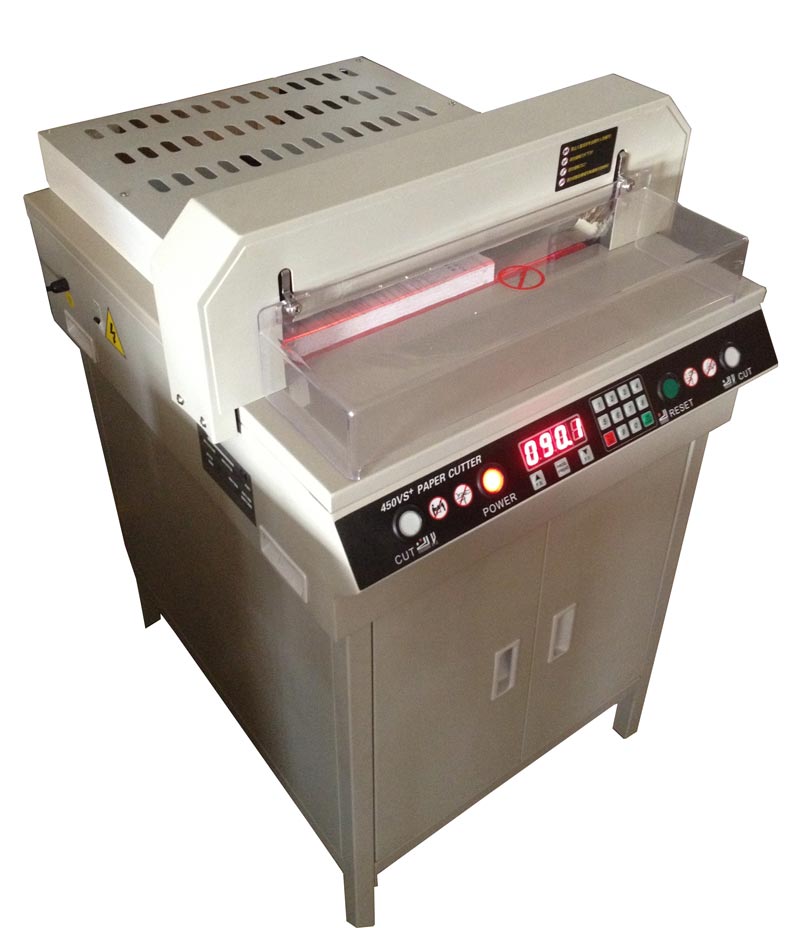

450mm fully automatic paper cutting machine, number control paper cutter machine
450V Number control precise paper cutter
With automatic contrapuntal funtion
Cut the paper by the skew knife,can cut material such as PVC
The life of the machine is double of the common one Search the cutting place automatically
Heavy-duty casting mechanism,A4 paper cutting machine
Precision-machined parts processing technique to ensure machine working
Safe guard design,A4 paper cutting machine
Making according to CE standard to guarantee safety with front & back plastic cover protective design
Inclined blade cutting patented technology
Any paper can be cut easily with inclined blade design
Patented appearance
Simple, exquisite metal technics and removable design, being applied to graphic printing office
Optical cutting line
Infrared laser indicating line,high-visible
Numerical-control circuit for pushing
Cutting size can be set at will and accurately
1. Automatic infrared light on the cutting edge
2. The heavy frame design optimization, precision processing, stable performance, durable;
3. High precision on paper control design to combine mechanism and power
4. self-closing button switches, both hands interlock device, automatic reset function,
guarantee absolute security;
5. high efficiency and safety,
6. Can make PET album, PVC album, menu, advertising….
Feature:
Intelligence: the machine is controlled by computer program with intelligent design, reset function, automatic press sheet and back up.
High precision: heavy duty structure, automatic adjustment for cutting standard, the highest precision is 0.2mm.
Durability: adopt high quality parts, sharp blade, intelligent keys, safe device for hands, lead screw driven for pulling sheet, digit display for cutting paper size.
Specifications
| Item | 450mm number control paper cutting machine |
| Model no | DB-450V |
| Max cutting size | 450mm |
| Min. cutting size | 50mm |
| Cutting thickness | 40mm |
| Cutting precision | +-0.5mm |
| Pressing paper mode | Auto |
| Push paper mode | Number control |
| Programmable | No |
| Display | Number |
| Power | 220V/1100V |
| Machine size | 840x740x670mm |
| Machine weight | 120kgs |
450mm number control paper cutting machine, electric paper cutter machine
Paper cutting machine advantage
Electric Paper Blade
Locking Back Gauge with Calibrated Crank
Solid Steel Blade Carrier
Two-hand operation for safety
Adjustable Steel Paper Guide in mm. / inches
All Metal Construction
Automatic Blade Return from any position
Blade/Knife Lock
Disc Brake for Instant Blade Stop
Solid spindle guided Paper Clamp applies variable, even vertical pressure along the Cutting Length
Easy Blade Change
External Blade Depth Adjustment
Fine Back Gauge (Back Stop) Manual Adjustments with calibrated hand crank on spindle guided Back Gauge.
Back Gauge moves in 1 mm. increments. Back Gauge accuracy is plus/minus .5mm/.019 inches
Hand Guard Shield for cutting safety on the Front and Rear Table.
Includes: 2 Keys, Power Cord, Knife Removal Sheath, Knife Removal Tool, Crank Handle and Screw, T3 and T5 Screw Drivers for changing the Blade and for Blade Micro Adjusting, 2 Knife Removal Screw Handles,Sleeve Set, Hexagonal Driver
Micro Adjustment of Blade
Resharpenable Blade
Safety Lock with key and Main Switch
